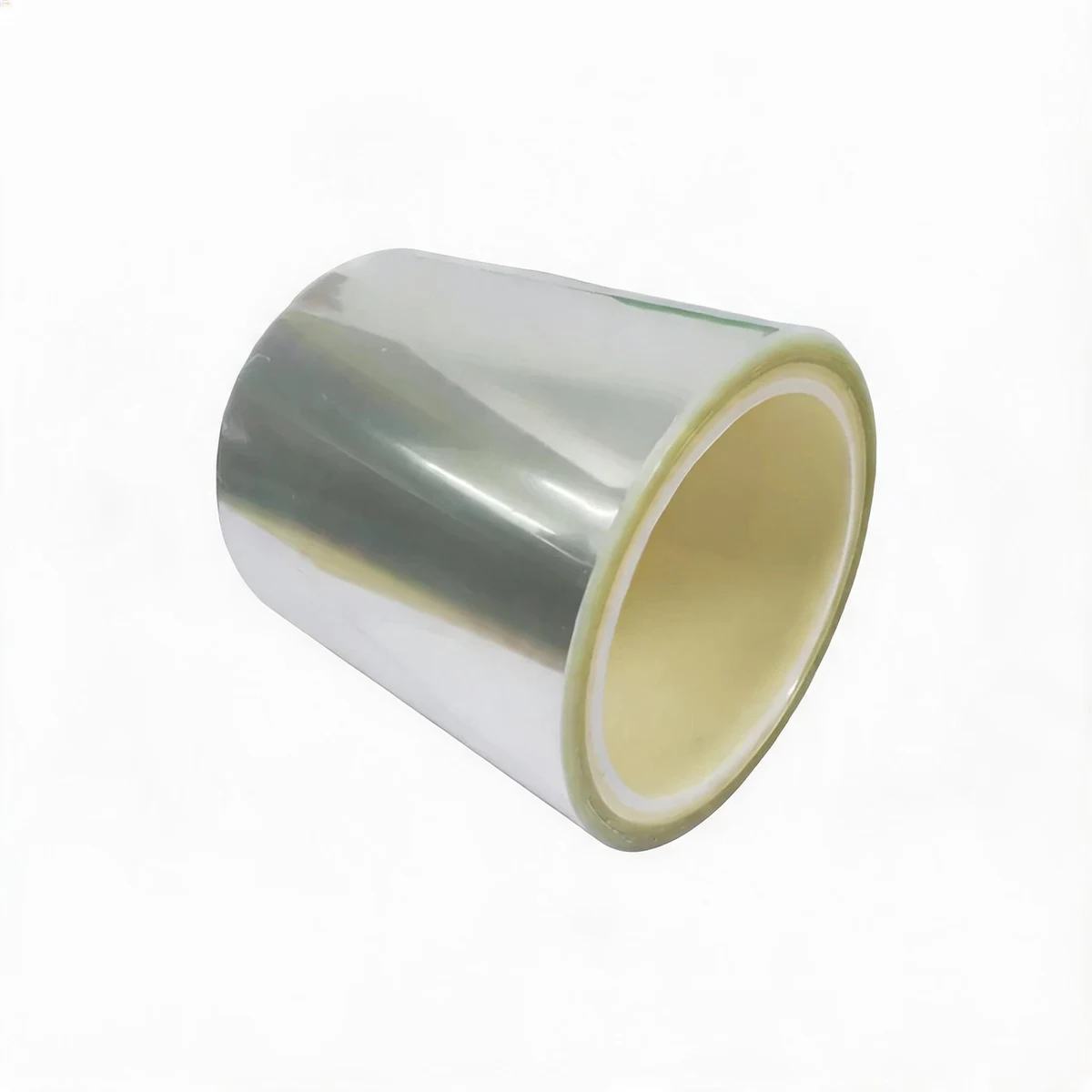

7105T Ultra-Thin PET Single-Sided Tape — 0.005mm Transparent Film Adhesive
Please select an option
| Material | Transparent PET film, acrylic adhesive on one side |
|---|---|
| Size | 500mm × 200m |
| Roll weight | 5.9 kg |
| SKU | 7105T-500-200-D41F |
| Ships from | Shenzhen, China |
7105T is an ultra-thin transparent PET single-sided tape: a clear polyester film coated on one side with acrylic pressure-sensitive adhesive and protected by a PET release liner, for a total thickness of 0.005 mm (4–5 μm). One face carries the adhesive and the other stays non-tacky, so the tape bonds a single surface as a protective and bonding layer that adds almost no height to the assembly. It is used for surface protection and encapsulation of electronic components and for protection during handling and transport, and it suits high-speed die-cutting and automated lamination. Specifications: transparent PET single-sided tape, total thickness 0.005 mm (4–5 μm), peel strength >400 g/in (GB/T 2792), release force 2–6 g/25mm at 23 °C / 65% RH. Rolls in stock; other widths slit to order — see the specification table on this page. Mating surfaces must be clean, dry and flat. Store at 25 ±5 °C and ≤65% RH; shelf life six months. Not a gap-filling tape.
Frequently asked questions
What sizes are available for 7105T Ultra-Thin PET Single-Sided Tape?
This product is in stock; the available sizes and roll lengths are listed in the specification table above and update as stock changes. Other widths and lengths can be converted to order — send us the dimensions you need.
How is shipping calculated?
Shipping is calculated by packed weight. Choose your country and enter a postal code in the cart, then select a service to see live UPS and FedEx rates; the amount carries into checkout.
Which countries do you ship to?
We currently ship to 40 countries and regions. Parcels are dispatched from Shenzhen, China; duties and taxes are paid by the recipient (DDU).
What is the return and exchange policy?
For consumables, report a quality issue with evidence within 14 days of receipt and we replace the product directly — no return needed. For bulk orders, email us to arrange a return.
Is 7105T suitable for high-temperature processes?
7105T is used for surface protection and encapsulation of electronic components, including the protection of heat-resistant parts; the applicable temperature range should be confirmed by testing on the actual assembly.
Can it be die-cut into shapes?
Yes — release force is controlled at 2–6 g/25mm on a PET release liner, which is specified for high-speed die-cutting and automated lamination.
What does a 5 μm thickness mean on the assembly?
The total construction is 0.005 mm (4–5 μm) — PET film, acrylic adhesive and release liner — so the tape bonds or protects a surface without adding measurable height to the stack.
How should the tape be stored?
Store at 25 ±5 °C and ≤65% RH; shelf life is six months from delivery.
