6005T Ultra-Thin PET Double-Sided Tape — 0.005mm Transparent Film Adhesive
Please select an option
| Material | Transparent PET film carrier, acrylic adhesive both sides |
|---|---|
| Roll weight | 0.374 kg |
| SKU | 6005T-12.7-200-4720 |
| Ships from | Shenzhen, China |

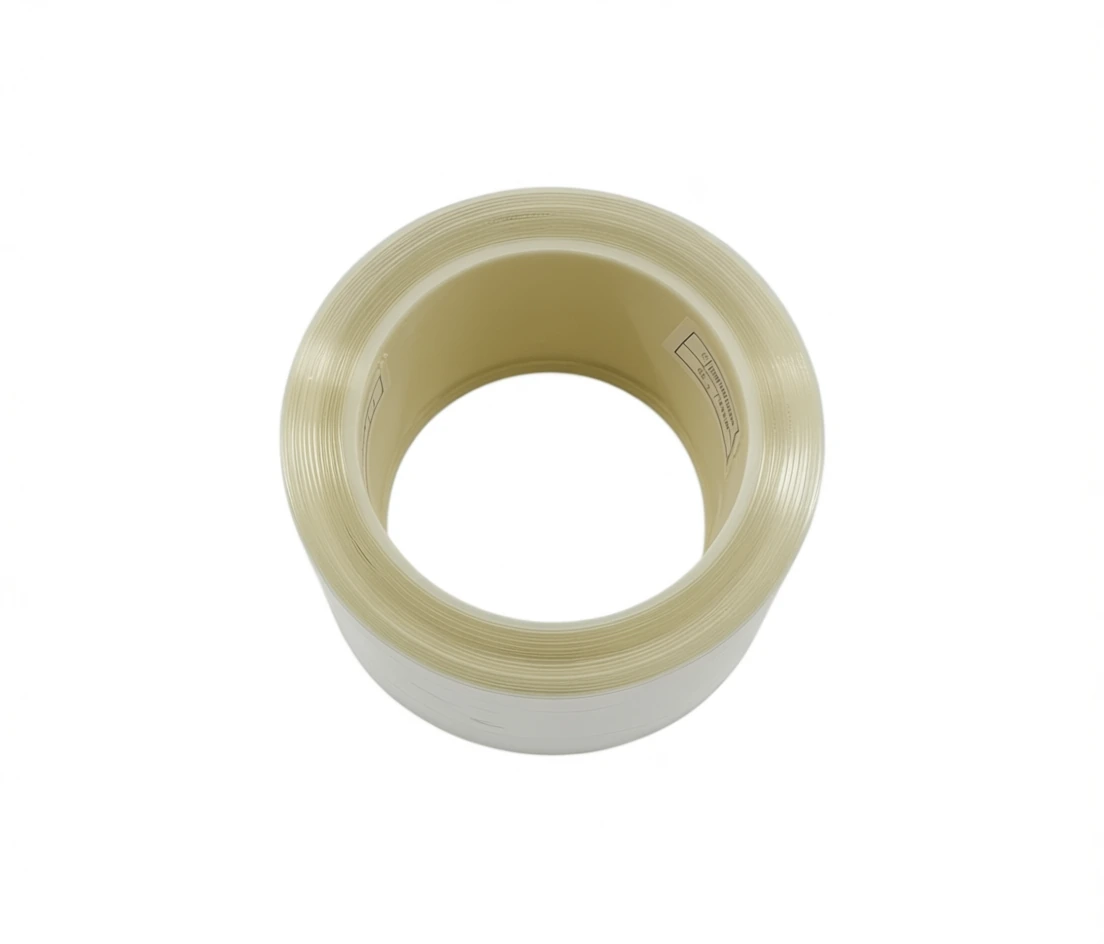

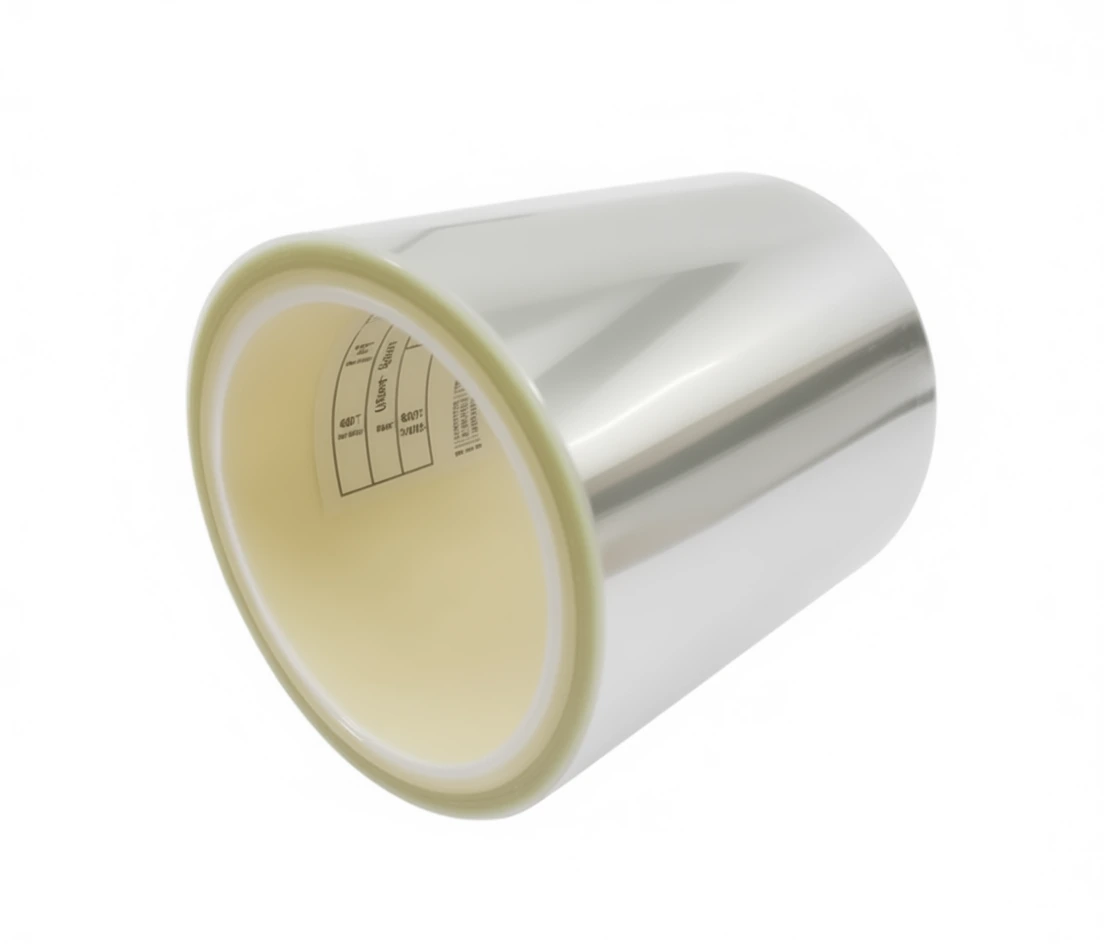

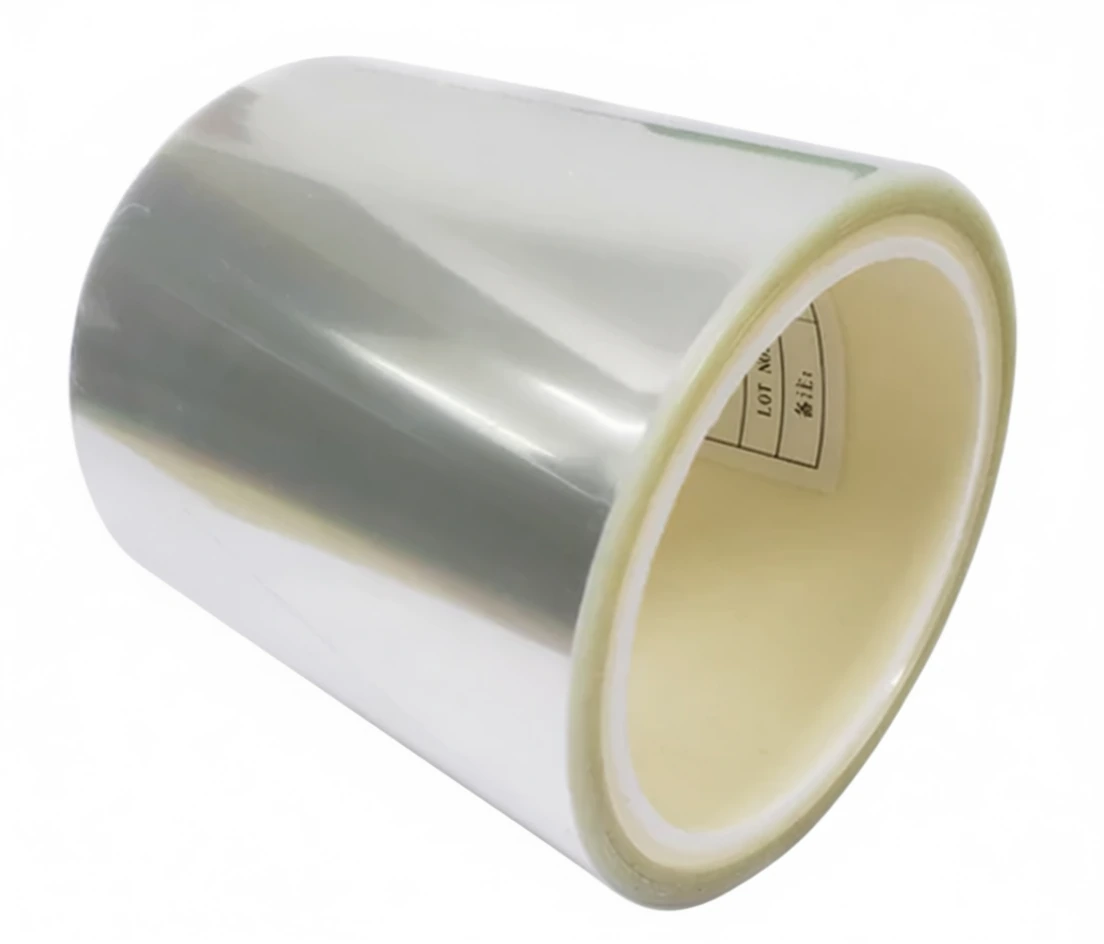

6005T is an ultra-thin transparent PET double-sided tape: a 0.005 mm (5 μm) clear polyester film carrier coated on both sides with acrylic adhesive. At five micrometres the carrier itself is barely a film — the tape provides a controlled, uniform bonding layer where the gap between parts must stay effectively zero. It is supplied here as slit rolls from 1020 mm master rolls, cut in-house to the widths shown on this page; other widths can be cut on request, and the tape supports die-cutting and punching into gaskets, spacer rings and custom shapes. The transparent PET carrier keeps the bond line invisible and dimensionally stable, which suits thin electronic assemblies, flexible printed circuits, membrane switches, decorative trim and any application where a standard thick tape would visibly lift or misalign. It is not a gap-filling tape: the mating surfaces must be clean, dry, flat and free of release agents. Specifications: 6005T, transparent PET film carrier, acrylic adhesive both sides, tape thickness 0.005 mm (5 μm); supplied on rolls of 200 m per roll, master width 1020 mm, slit to the widths shown on this page. The 6005T series covers 5 μm to 200 μm carrier thicknesses (6005T, 6010T, 6015T, 6020T, 6050T, 6080T, 6100T, 6150T, 6200T). Siminkey manufactures and die-cuts this tape in-house; units are given in inches and millimetres on this page.
References
Specifications (thickness, roll length, master width) are taken from the Siminkey product page and the product data sheet.
Frequently asked questions
What sizes are available for 6005T Ultra-Thin PET Double-Sided Tape?
This product is in stock; the available sizes and roll lengths are listed in the specification table above and update as stock changes. Other widths and lengths can be converted to order — send us the dimensions you need.
How is shipping calculated?
Shipping is calculated by packed weight. Choose your country and enter a postal code in the cart, then select a service to see live UPS and FedEx rates; the amount carries into checkout.
Which countries do you ship to?
We currently ship to 40 countries and regions. Parcels are dispatched from Shenzhen, China; duties and taxes are paid by the recipient (DDU).
What is the return and exchange policy?
For consumables, report a quality issue with evidence within 14 days of receipt and we replace the product directly — no return needed. For bulk orders, email us to arrange a return.
How thin is the carrier film of 6005T?
6005T uses a transparent PET carrier of 0.005 mm (5 μm), the thinnest grade in the 6005T series. The tape is supplied on 200 m rolls slit from 1020 mm master rolls.
Can 6005T be die-cut or punched into shapes?
Yes. As stated on the Siminkey product page, the tape supports die-cutting and punching into gaskets, spacer rings and custom shapes; Siminkey also offers die-cut parts made from this tape.
What widths and lengths are offered?
The tape is sold in 200 m rolls with widths shown on this page (from 1/2 inch (12.7 mm) to the 1020 mm master width). Other widths can be slit on request.
Is 6005T a film tape or a foam tape?
It is a film tape. The carrier is a clear polyester (PET) film with acrylic adhesive on both sides, total tape thickness 0.005 mm (5 μm) — not a foam or tissue construction.
Where is 6005T typically used?
Typical uses are thin electronic assemblies, flexible printed circuits, membrane switches and decorative trim, where the bond line must stay invisible and the parts stay flat. It is not a gap-filling sealant.
